Air Handling Unit

PT. I.T.U. AIRCONCO's new Air Handling Unit is an improved product that offer a competitive value with superior quality. Our wide range of units can provide adaptability to any commercial or industrial application. There are 15 unit types of unit for horizontal arrangement and 9 models for vertical arrangement which can accommodate airflow volumes of 1,700 CFM to 59,200 CFM  (2,880 CMH to 100,580 CMH).

These double skinned panel units with 1/2” OD copper tube and aluminum fin coils provide the optimum in Air Handling Equipment. New AHU is designed to have an attractive appearance with its extruded aluminum extruded frame and polyurethane injected panels which have excellent thermal properties (0.68 W/m2 K) and maximum sound reduction through the casing. With a unique locking system where panels meet the frame, there are no bolts and nuts visible on the outer surface of unit, making the AHU more simple, neat and sturdy.

Features & Benefits

Framework is designed with aluminum material and nylon  corner connection for ease in building. It has more advantages in flexibility and is possible to Completely Knock Down (CKD) and build in an area where access or space is limited.

All panels are double-skinned (walled) panels and injected between with high efficiency Polyurethane foam insulation material which give maximum thermal insulation and attenuation to break out noise. Double-skinned (walled) panels have a smooth surface which makes cleaning easy to reduces risk  of dirt collecting on unit. This air tight characteristic makes it a superb application for hospitals, food industries and the electronic industries as it ensures a clean air  supply.

High Efficiency Coils

ITU ½” OD Copper tubes Cooling Coils for AHU units give maximum cooling and  dehumidification and are used in the standard Drainable Chilled Water Coils or optional Direct  Expansion Coils with pre-engineered direct expansion circuiting selection.

Fans

For duties up to 3 in-wg of Total Static Pressure, standard fans are Forward Curved heel while for a higher Total Static Pressure, ITU offers either Forward Curved Medium Pressure or Backward Curved Wheel depending on technical specifications.

High Grade Aluminum Frame

Injected Polyurethane Foam Panels

UNIT

032

050

074

113

156

217

270

336

402

490

578

666

754

879

1080

COIL

TH

14

14

20

24

24

30

36

36

41

58

64

72

72

84

88

FL

33.4

41.3

43.3

55.1

74.8

82.7

90.5

108.3

108.3

98.4

104.3

104.3

120.0

120.0

141.0

FA

4.06

5.02

7.56

11.48

15.58

21.54

28.28

33.84

38.54

49.54

57.94

65.18

75.00

87.50

107.70

CFM

450 FPM

1,827

2,259

3,402

5,166

7,011

9,693

12,726

15,228

17,343

22,293

26,073

29,331

33,750

39,375

48,465

500 FPM

2,030

2,510

3,780

5,740

7,790

10,770

14,140

16,920

19,270

24,770

28,970

32,590

37,500

43,750

58,850

550 FPM

2,233

2,761

4,158

6,314

8,569

11,847

15,554

18,612

21,197

27,247

31,867

35,849

41,250

48,125

59,235

Engineering Data

MODEL

DIMENSION

A

B

C

D

E

F

G

H

I

J

K

L

M

O

p

HORIZONTAL

mm

32

1,100

1,175

580

478

288

334

75

288

812

65

1,156

1,101

645



50

1,300

1,175

580

506

288

506

75

288

812

65

1,356

1,101

645



74

1,350

1,300

740

494

362

494

75

462

863

65

1,406

1,226

805



113

1,650

1,400

890

598

454

598

75

454

871

65

1,706

1,326

955



156

2,150

1,400

890

821

508

821

75

508

817

65

2,206

1,326

955



217

2,350

1,600

1,090

856

638

856

75

638

887

65

2,406

1,526

1,155



270

2,550

1,750

1,290

917

716

917

75

716

959

65

2,606

1,676

1,355



336

3,000

1,750

1,290

1,142

716

1,142

75

716

959

65

3,056

1,676

1,355



402

3,000

1,950

1,445

1,099

802

1,099

75

802

1,073

65

3,056

1,876

1,510



490

2,750

1,604

2,065

926

898

926

75

898

631

65

2,806

1,420

2,130

1,000

924

578

2,900

1,604

2,240

946

1,008

96

75

1,008

521

65

2,956

1,420

2,305

1,000

924

666

2,900

1,804

2,440

946

1,008

946

75

1,008

721

65

2,956

1,620

2,505

1,000

924

754

3,300

1,804

2,440

1,085

1,130

1,085

75

1.13

599

65

3,356

2,116

2,505

1,000

924

879

3,475

2,100

2,920

1,172

1,130

1,172

200

1,130

770

80

3,531

1,916

3,000

1,100

1,024

1080

4,010

2,100

3,060

1,371

1,268

1,371

200

1,268

632

80

4,065

1,916

3,125

1,100

1,024

Dimension Horizontal Model

MODEL

DIMENSION

A

B

C

D

E

F

G

H

I

J

K

L

M

VERTICAL

mm

032

1,100

652

1,105

506

288

334

75

288

289

65

1,156

578

645

050

1,300

652

1,105

494

288

506

75

288

289

65

1,356

578

645

074

1,350

800

1,430

478

362

494

75

362

363

65

1,406

726

805

113

1,650

900

1,800

598

454

598

75

454

371

65

1,706

826

955

156

2,150

900

1,800

856

508

821

75

508

317

65

2,206

826

955

217

2,350

1,150

2,200

821

638

856

75

638

437

65

2,406

1,026

1,155

270

2,550

1,300

2,480

917

716

917

75

716

509

65

2,606

1,226

1,355

336

3,000

1,300

2,480

1,142

716

1,142

75

716

509

65

3,056

1,226

1,355

402

3,000

1,500

2,900

1,099

802

1,099

75

802

623

65

3,056

1,426

1,510

Dimension Vertical Model

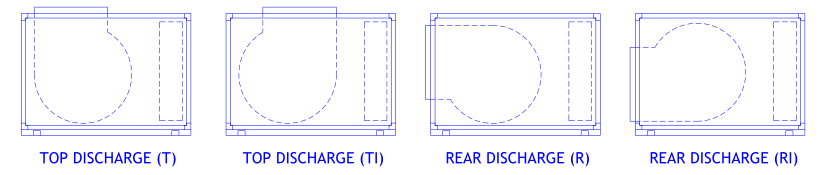

Fan Arrangement
